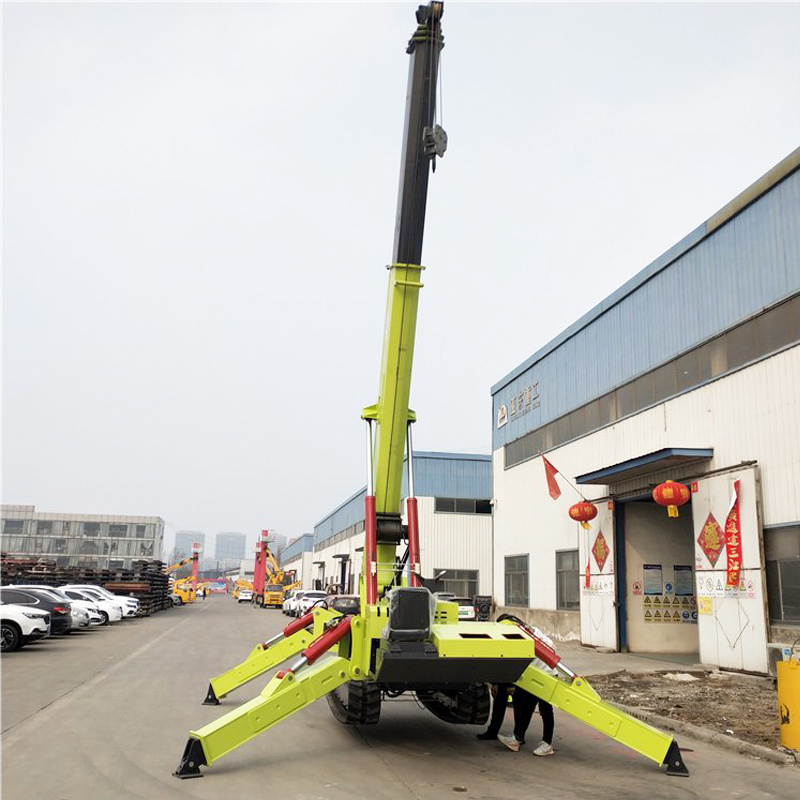

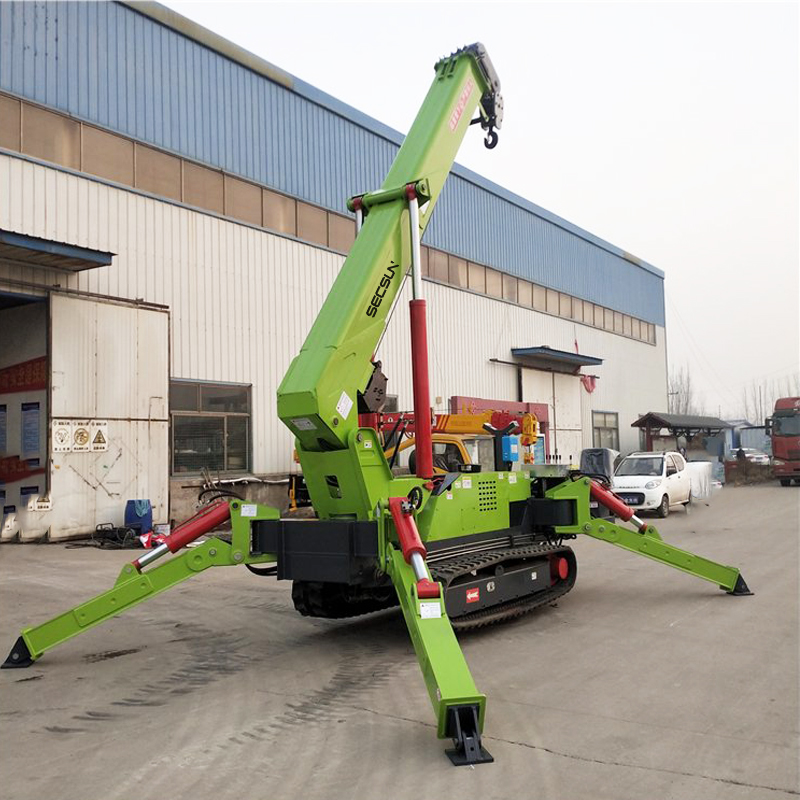

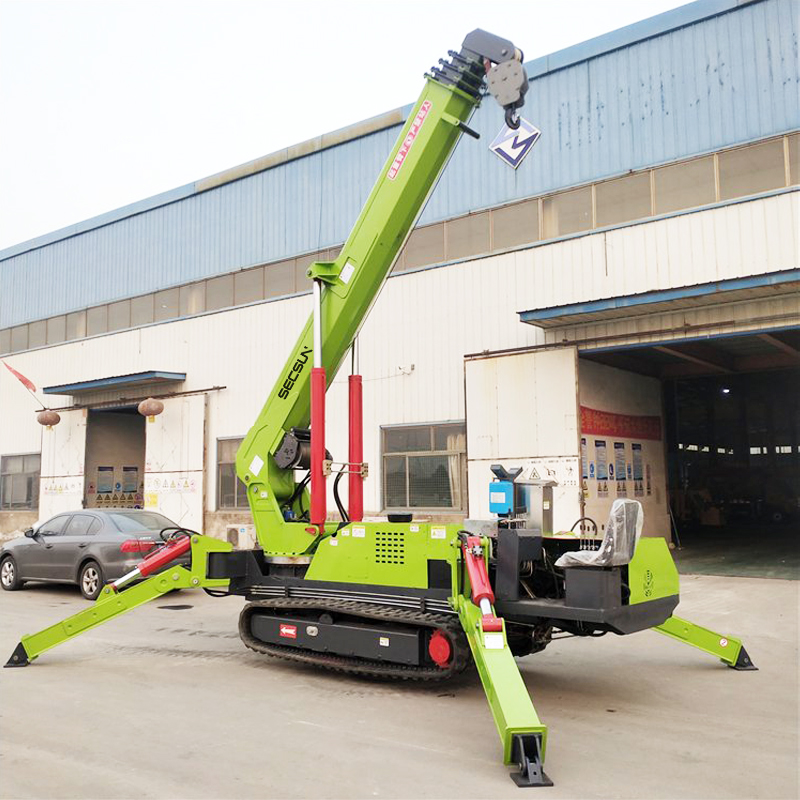

1.The Crawler Spider Crane for moving loads quickly, easily, and safely.
2.Spider crane, suitable for occasions with limited space.
3.The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4.The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm.
Model | SSC50 | SSC80 | SSC100 | SSC120 |
Maximum operating radius | 15m | 18m | 18m | 19m |
Maximum Ground Lift | 17m | 21m | 21m | 21m |
Hook lifting speed | 12m/min (4 ropes) | 12m/min (4 ropes) | 11m/min (4 ropes) | 10m/min (4 ropes) |
Specification of steel wire rope | Φ12mm×80m | Φ12mm×80m | Φ12mm×100m | Φ12mm×120m |
Boom form | 4m×5-section lifting arm | 5m×5-section lifting arm | 5m×5-section lifting arm | 5m×5-section lifting arm |
Boom length/time | 4.5m-17m/54sec | 5.5m-21m/54sec | 5.5m-21m/54sec | 5.5m-21m/54sec |
Boom angle/time | 0-78°/13sec | 0-78°/13sec | 0-78°/15sec | 0-78°/17sec |
Rotation angle/speed | 0-360°(Continuous)/38sec | 0-360°(Continuous)/38sec | 0-360°(Continuous)/40sec | 0-360°(Continuous)/42sec |
Maximum extension amplitude | 5800×4900×5600mm | 7000×5070×6700mm | 7000×5070×6700mm | 7000×5070×6700mm |
Walking mode | Hydraulic motor drive double speed | Hydraulic motor drive double speed | Hydraulic motor drive double speed | Hydraulic motor drive |
Walking speed | 0-2.5km/h | 0-2.5km/h | 0-2.5km/h | 0-2.5km/h |
Gradeability | 25°(36%) | 25°(36%) | 25°(36%) | 25°(36%) |
Engine Brand | Yunnei | Yunnei | Yunnei | Yunnei |
Start mode | Electric start | Electric start | Electric start | Electric start |
Start performance | -5°C~40°C | -5°C~40°C | -5°C~40°C | -5°C~40°C |
Fuel/Volume | Diesel oil/8L | Diesel oil/8L | Diesel oil/8L | Diesel oil/8L |
Battery capacity | 24V 45AH | 24V 45AH | 24v 45AH | 24v 45AH |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
