1.Telescoping mechanism is designed reliably, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts.
2.Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
3.Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.

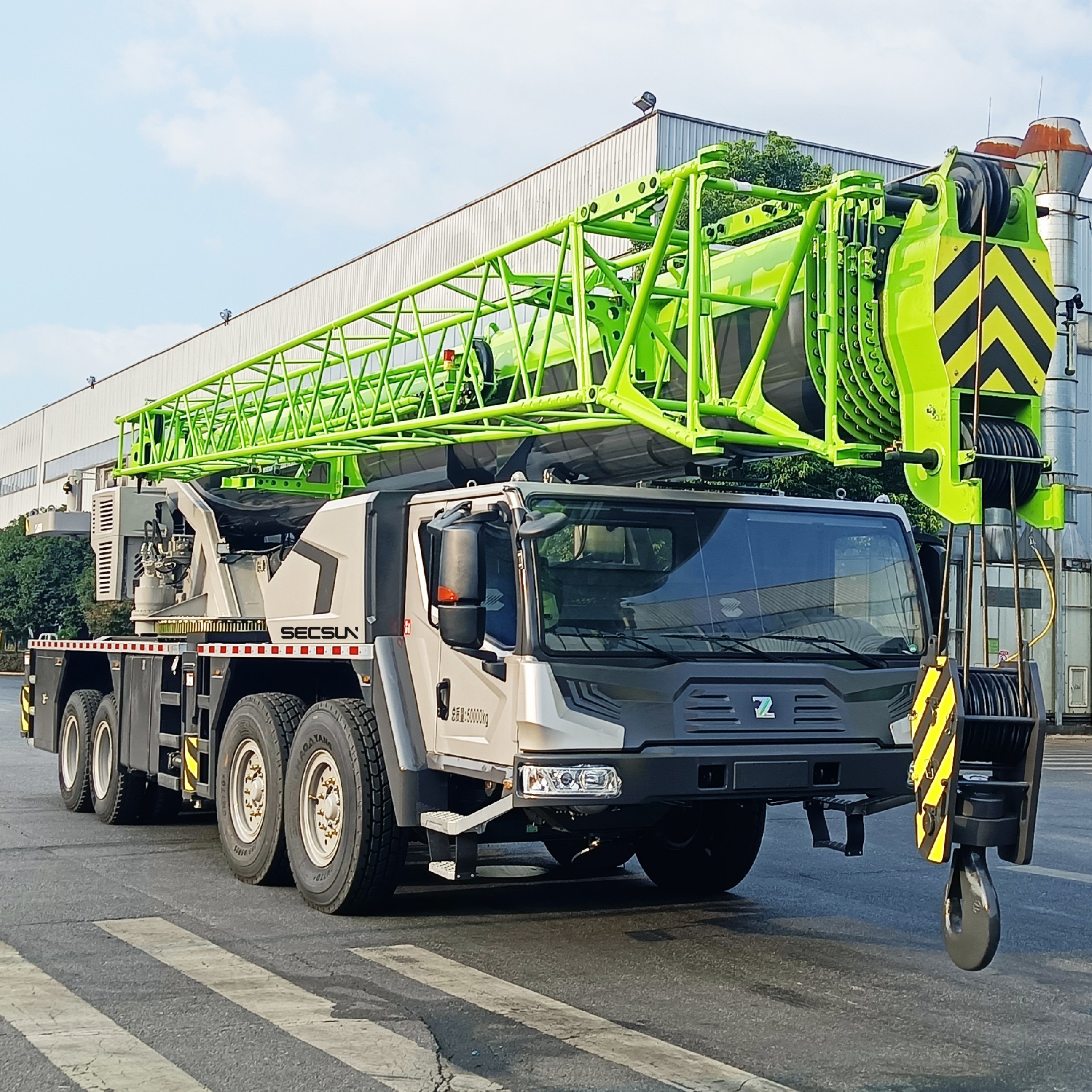

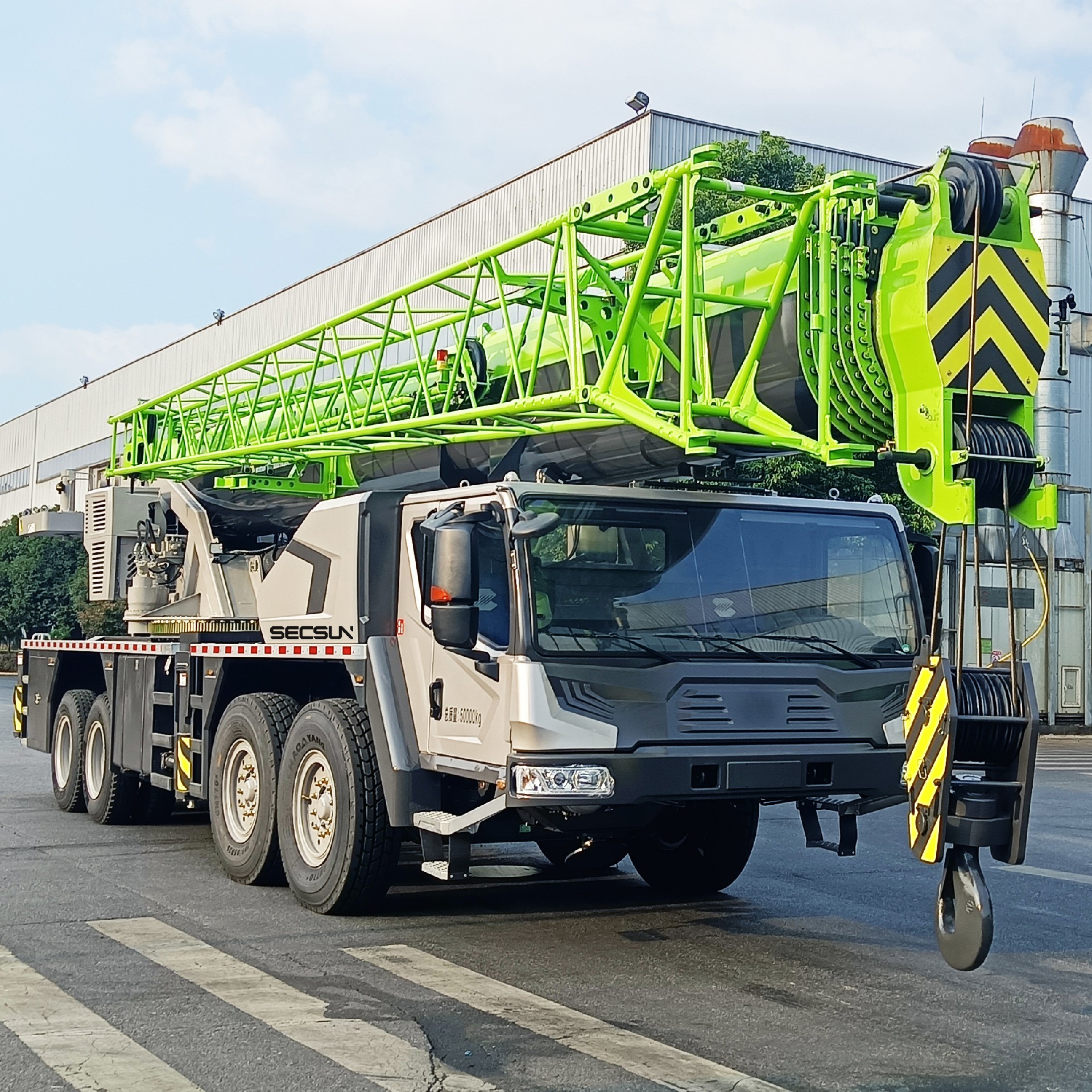

| Model | SCWH1000 | |
| Maximum rated gross lifting capacity | kg | 100000 |
| Max. lifting moment of basic boom | kN.m | 4410 |
| Max. lifting moment of the longest boom | kN.m | 2328 |
| Max. lifting height of basic boom | m | 14 |
| Max. lifting height of main boom | m | 64.5 |
| Max. lifting height of jib | m | 82.2 / (89.2) |
| Maximum speed of single rope (main winch) | m/min | 115 |
| Maximum speed of single rope | m/min | 90 |
| Boom lift time | S | 70 |
| Jib extension time | S | 570 |
| Slewing speed | r/min | 0~1.5 |
| Maximum Altitude | m | 85 |
| Maximum travel speed | km/h | 45 |
| Maximum Climbing Gradient | % | 24 |
| Minimum Turning Diameter | M | 330 |
| Minimum Ground Clearance | mm | 46 |
| Complete vehicle kerb mass | kg | 49805 |
| Front Axle load | kg | 24000 |
| Rear Axle load | kg | 26000 |
| Overall dimensions (L×W×H) | mm | 14990×2900×3990 |
| Longitudinal distance of outrigger | m | 6.53 |
| Main arm length | m | 13.6~64 |
| Jib length | m | 10.4,17.5 |
| Jib mounting angle | 0、15、30 | |
| Model | WP12.375E50 | |
| Rated Power | kW/r/min | 276/1900 |
| Maximum output torque | N.m/r/min | 1800/(1000~1400) |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
