1.Statistics the working conditions of a large number of customers, collect all kinds of faults domestic and overseas, use finite element simulation analysis, dynamic simulation and other measures to establish the allowable fatigue value database of each material of the product
2.Data support as the basis of design, ensure thereasonable structure and excellent performance of boom and frame system.

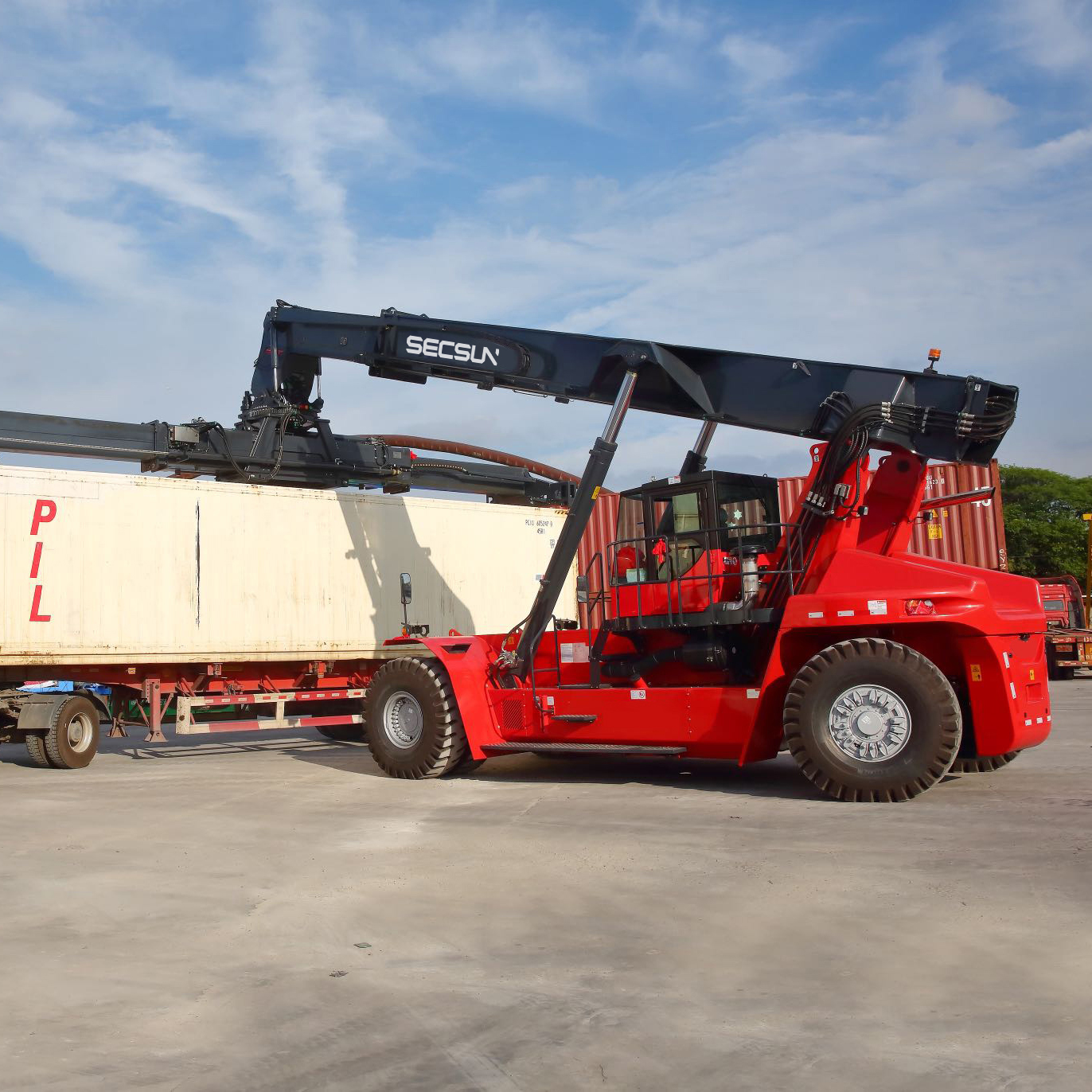

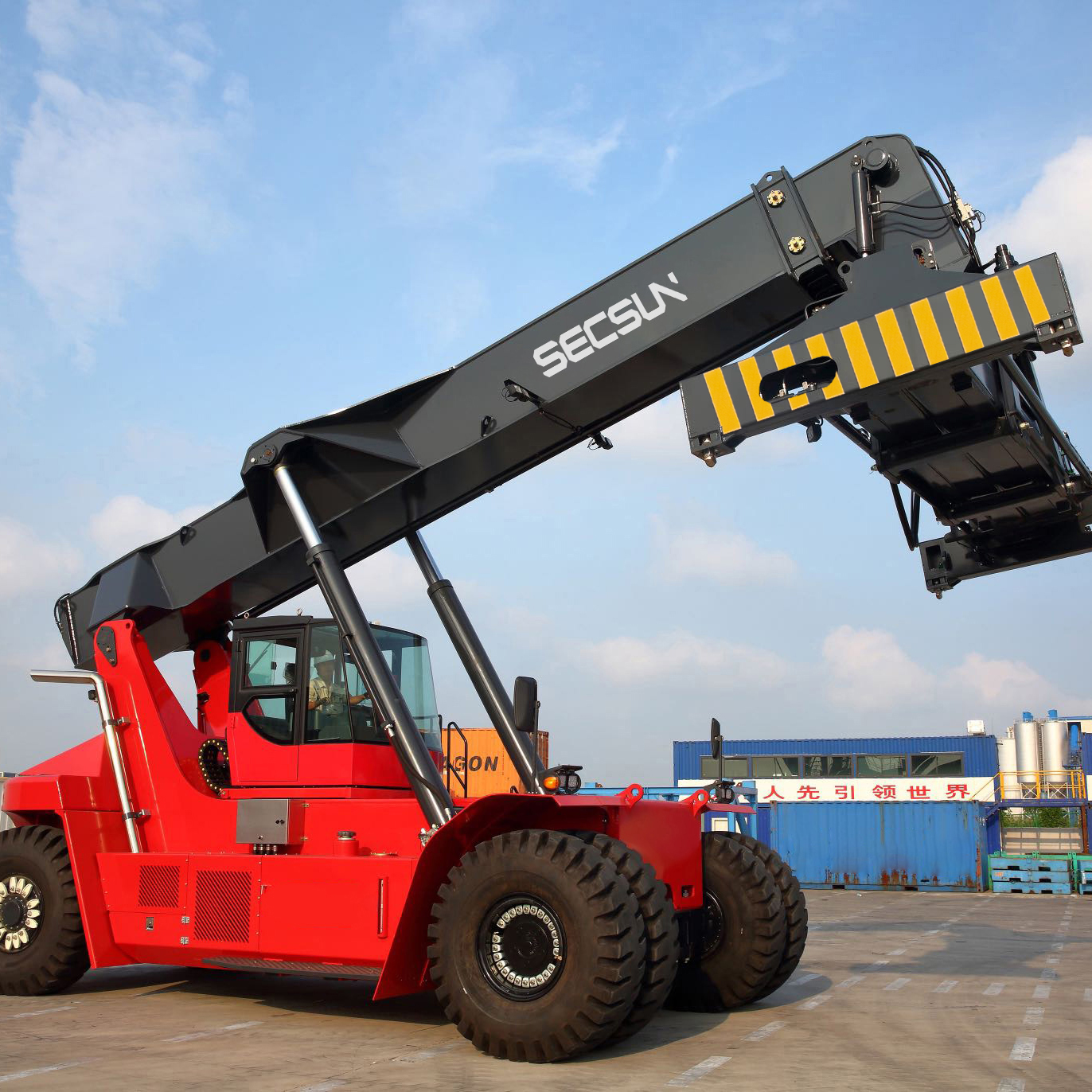

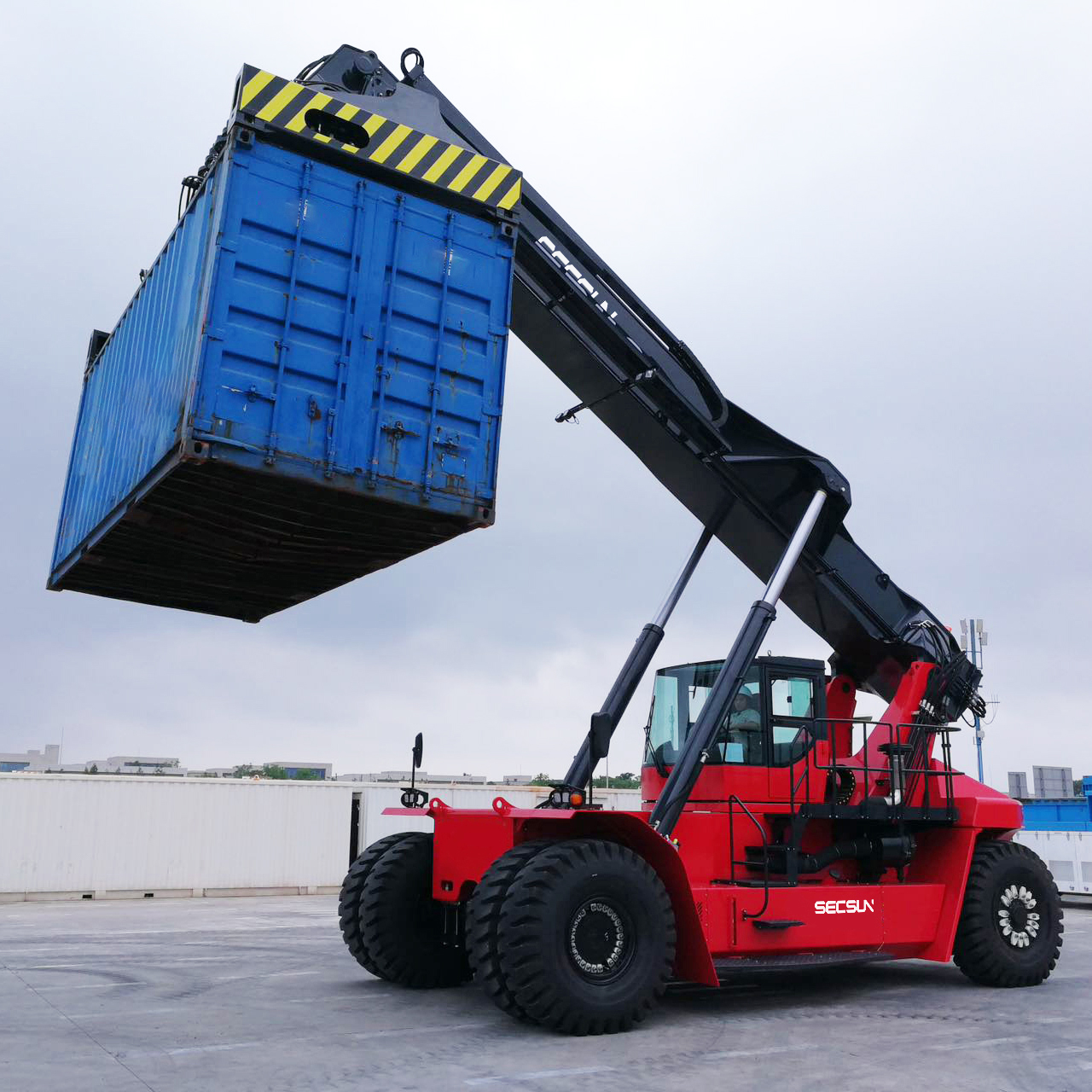

3.Real-time detection of Reach Stacker oil pressure, boom length,
angle and tipping detection signals to achieve torque protection
4.When the tilting moment reaches a certain value or the tilting signal is detected, the controller only allows the boom to retract, ensures the intelligent anti tilting safety protection.
| Model | SCRS4531 |
| Engine | CUMMINS |
| Transmission | DANA |
| Driver Axle | ATI/KESSLER |
| Spreader | ZDJ450 |
| Spreader Weight | 7.8t |
| Max Lift Capacity | 45t/31t/16t |
| Max Spreader Lifting Height | 15100mm |
| Boom Angle | 0～60deg |
| MaxLiftingSpeed(Unloaded/Load) | 420/250(mm/s) |
| Drivce Speed(Unloaded/Load) | 450/300(mm/s) |
| Gradeability(Non-load/Loaded) | 25/21(km/h) |
| Hydraulic Pressure | 39/32% |
| Overall Dead Weight | 262bar |
| Overall Dead Weight | 72t |
| Stscking Lenght | 5(9'6") |
| Max.lenght | 11300mm |
| Wheel Base | 6000mm |
| Max.height | 4625mm |
| Max.width | 6053-12185mm |
| Turning Radius Inner | 8000mm |
| Aisle Width With 20ft | 11797mm |
| Aisle Width With 40ft | 13965mm |
| Fuel Consumption | 18L～20L/h |
| Tire Type | 18-25×40P |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
